Stewart Cine-V Variable Masking Curved Screen

Stewart Cine-V Variable Masking Curved Screen

Ask a question about this productGet a QuoteInstant Coupons

Stewart Cine-V Variable Masking Curved Screen
Item Code: CINE-V
Sale Price: $12,725.99
Quantity:

Maximum Diagonal
Screen Material
Cover
Delivery:


Stewart's ingeneous Cine-V is a fixed curve screen for those who wish for the ultimate in screen ratio flexibility. Horizontal side panels descend on the left and right sides of the viewing area to create a screen with a 2.35:1 (Cinemascope) or 16.9 (widescreen) viewing area. This versatility makes the Cine-V a great choice no matter what ratio your movie, game or show is originally presented in.

The screen's vertical height remains consistent, while two electronically-controlled black mask panels move down from above the sides of the screen. The Cine-V can be configured with any of Stewart’s stellar projection screen materials, and Stewart's proprietary snap fastener screen tension system ensures a flawlessly smooth screen for a perfect image. The Stewart VeLux™ finish of the edges further improves quality by absorbing excess projection or "over-scan" and adding to visual contrast.

HTmarket Expert Tip The primary difference between the Cine-V and CineCurve are that the masking of the Cine-V drops down from the top of the screen, like closing blind, while the CineCurve's masking comes in from the side, like closing curtains. Also, the CineCurve features an IR remote, whereas the Cine-W uses 12v control triggers. Finally, the Cine-V does not include 4:3 ratio capability (this isn't a big problem, as NTSC 4:3 ratio entertainment is getting hard to find).


Standard Features:
  • Dual Aspect Ratio - Constant Height/Variable Width
  • Aluminum extrusion curved frame finished with VeLux™
  • Native 2.35:1 aspect ratio
  • Electronically controlled vertical masking
  • Snap fastening securely attaches screen to frame
  • Curvature reduces screen surface exposure to crossreflected and side wall sources of ambient light
  • Heightens viewer’s sense of immersion
  • Custom radius manufactured to optimize your application
  • Complements projectors with anamorphic lenses
  • (2) external 12v triggers (VICS) - vertical panel control
Custom Options (Contact us for quote):
  • Rear projection
  • Custom sizes and aspect ratios
  • Acoustic perforation in screen material
  • Accoustically trasparent masking panels
  • Review of Stewart Filmscreen Material
    HTmarket.com review's Stewart Studiotek 130, Firehawk G3 and Ultramatte 150 screen fabrics side by side. You can learn which screen material to choose with your Stewart Filmscreen. This video helps you select the proper screen fabric.

Screen Material
FireHawk G3
Engineered for use with 1080p technology
Extremely smooth & flat optical surface
Enhanced focusing capabilities
Superior performance in high ambient light
Microperf X² (optional, call for availability)
Gain: 1.25
Half Gain: 30 degrees
StudioTek 130 G3
Industry's standard reference screen
JKP & ISF Certified
Extremely smooth & flat optical surface
Enhanced focusing capabilities
30% brighter than a matte-white screen
Microperf X² (optional, call for availability)
Gain: 1.3
Half Gain: 68 degrees
GrayHawk RS G3
Industry's first gray reference screen
JKP & ISF Certified
Extremely smooth & flat optical surface
Enhanced focusing capabilities
Neutral density gray for added contrast
Microperf X² (optional, call for availability)
Gain: 0.92
Half Gain: 64 degrees
FireHawk SST
Engineered for short throw applications
Extremely smooth & flat optical surface
Enhanced focusing capabilities
Superior performance in high ambient light
Microperf X² (optional, call for availability)
Gain: 1.1
Half Gain: 33 degrees
UltraMatte 130
30% brighter than matte-white screens
Wide viewing angle for off axis seating
Great for large venue applications
Microperf X² or Cinemaperf (optional, call for availability)
Gain: 1.3
Half Gain: 42 degrees
UltraMatte 150
50% brighter than matte-white screens
Higher gain for low output projector
Great for large venue applications
Microperf X²or Cinemaperf (optional, call for availability)
Gain: 1.5
Half Gain: 35 degrees
SnoMatte 100
Unity gain reference screen
Excellent white field uniformity
Extremely smooth & flat optical surface
Wide viewing angle for off axis seating
Microperf X²or Cinemaperf (optional, call for availability)
Gain: 1.0
Half Gain: N/A
UltraMatte 200
100% brighter than matte-white screens
Higher gain for low output projector
Great for large venue applications
Microperf X²or Cinemaperf (optional, call for availability)
Gain: 2.0
Half Gain: 26 degrees
GrayMatte 70
Neutral density matte gray surface
Excellent for edge-blending applications
Dampens cross refection in curved installs
Microperf X²or Cinemaperf (optional, call for availability)
Gain: 0.7
Half Gain: N/A

Why Microperf X² (custom orders, call for quote) is the industry's #1 choice for acoustically transparent material:
  • Available with any of Stewart's front projection materials (excluding Silver 3D)
  • First projection material to be THX Ultra Certified
  • Impeccable image fidelity
  • Unbeatable audio quality (no secondary black backing is required)
  • Exceptional contrast, color saturation, and uniformity
  • Moiré pattern is eliminated
  • Significantly less light return/blow-through
  • Largest seamless acoustically transparent screen available (maximum material O.D. is 14-1/2 ft by 60 ft)
Why choose CinemaPerf (custom orders, call for quote) for your acoustically transparent solution:
  • Available with a variety of Stewart's front projection materials
  • Excellent for use in large venue installations where an acoustically transparent screen is required
  • Unbeatable image fidelity and audio quality (no secondary black backing is required)
  • Exceptional contrast, color saturation, and uniformity
  • No Moiré pattern

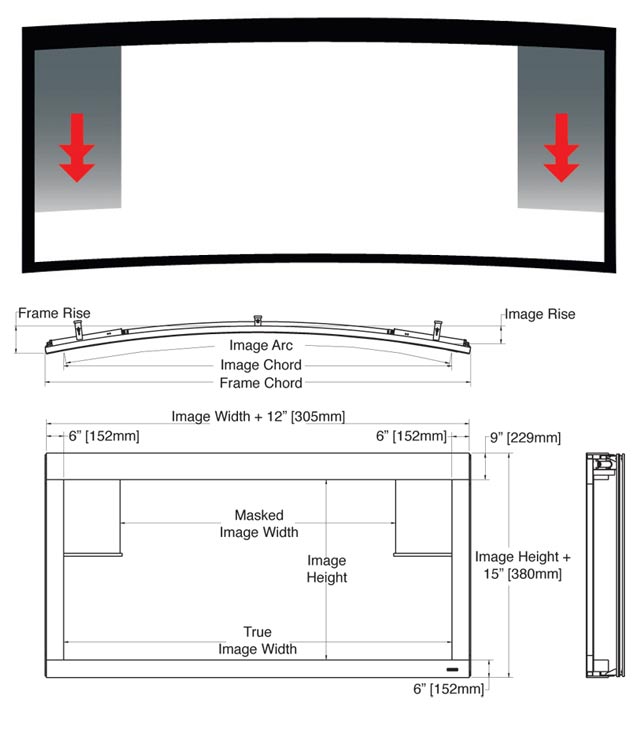

Maximum Dimensions:

Max Diagonal
Image Height
Max Image Width

Screen Height

120
47"
110 ½"
62"
130
51"
120"
66"

144

56"
132"
71"

Attainable Aspect Ratios:

Max Diagonal
HD (16:9) Image
HD (16:9) Diagonal
120
47" x 84"
96"
130
51" x 91"
104"

144

56" x 100"
114"
